Emerson DI ISO 24V KL3005X1-BA1 DI 12P5344X052 Isolated Charm
Condition: New with Factory Packaging
Model: KL3005X1-BA1 DI 12P5344X052
Hazardous Atmosphere
II 3G Ex ec IIC Gc
FM19ATEX0173U
IECEx FMG 19.0019U
FM21UKEX0017U
CL. I Div. 2 GP. A,B,C,D
CL. I Zone 2 AEx/Ex ec IIC Gc
FM17CA0145U
FM17US0286U
Power Specifications
LocalBus Power: 6.3 VDC at 32 mA
Field Circuit Power: 24 VDC at 12 mA
Environmental Specifications
Ambient Temperature: -40°C to +70°C
Shock: 10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants :ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity :5 to 95% Non-Condensing
Terminal Block key Position: 6C
Note:
Refer to the product label for serial number and location and date of manufacture.
Warning:
This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P5403 "DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the "DeltaV™ S-Series and CHARMs Hardware Installation" manual.
Removal and Insertion
This unit cannot be removed or inserted with system power energized.
Non-sparking field circuits MUST be de-energized before removing and inserting a CHARM.
For non-sparking circuits, the fuse on a CHARM terminal block cannot be removed when field power is energized.
A keying system ensures compatibility between an Address Plug and CHARM Address Terminal when installed. The Address Terminal keys are automatically set the first time the Address Plug is installed. To install a different Address Plug number on an Address Terminal, reset the keys by removing the Address Terminal from the CHARM Baseplate and pressing the keys to release them from the locked position.
Maintenance and Adjustment
This unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.
Our advantage Products:
【Honeywell】Module DCS / PLC
【Emerson / Delta V】Module
【ABB】Input Output Module
【AB】Module / Touch Screen
【Rosemount】Pressure and Temperature Transmitter
【Yokogawa】Pressure Transmitter
【Yaskawa】Servo Drive / Servo Motor
【GE/Fanuc】IC69 Series PLC
【Mitsubishi】Servo Drive / Servo Motor
(Modicon,SMC,SICK,NORGREN,Siemens etc.)
|
|

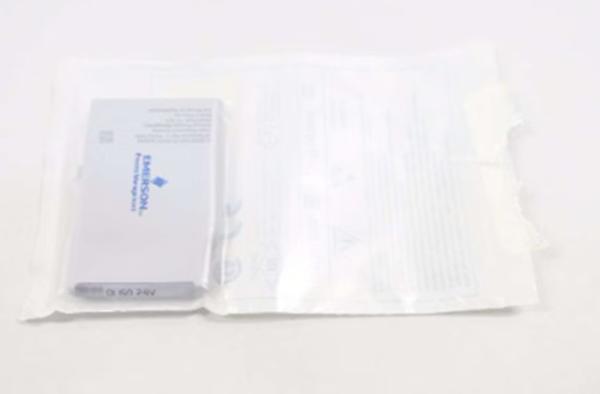

Emerson DI ISO 24V KL3005X1-BA1 DI 12P5344X052 Isolated Charm Images
|
